Gauges for Anaesthetic and Respiratory Equipment – Conical Connectors as per ISO5356-1:2004
Anaesthetic and Respiratory Gauges, ISO5336-1
The anaesthetic and respiratory equipment – conical connectors are cones & sockets made of metal & non-metal; intended for connecting the lines. Cones & Socket engaged in between each other by applying push force with twistaction.

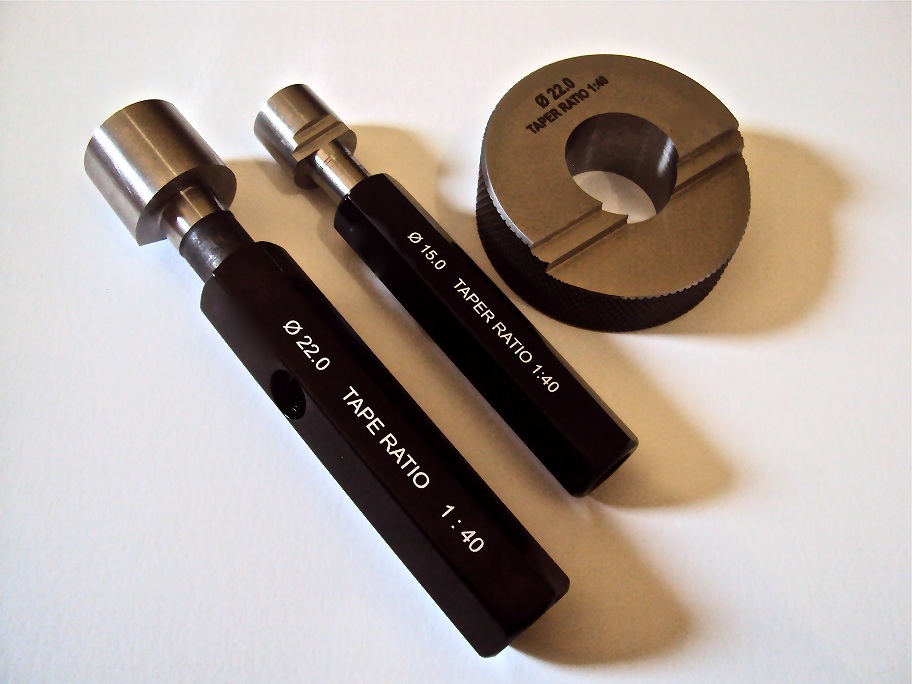

Our gauges are designed and manufactured according to ISO5356-1:2004 for testing the anaesthetic & respiratory equipment’ssuch as Endotracheal Tube, Tracheostomy Tube, Flexible Catheter Mount, Nebulizer Mask, Venturi Valve Mask Kit, Oxygen Recovery T-kit, Ventilator Tubing, Airway Connectors, Bacterial Filters, Respiratory Gas Humidifiers & certain other breathing system equipment’s.

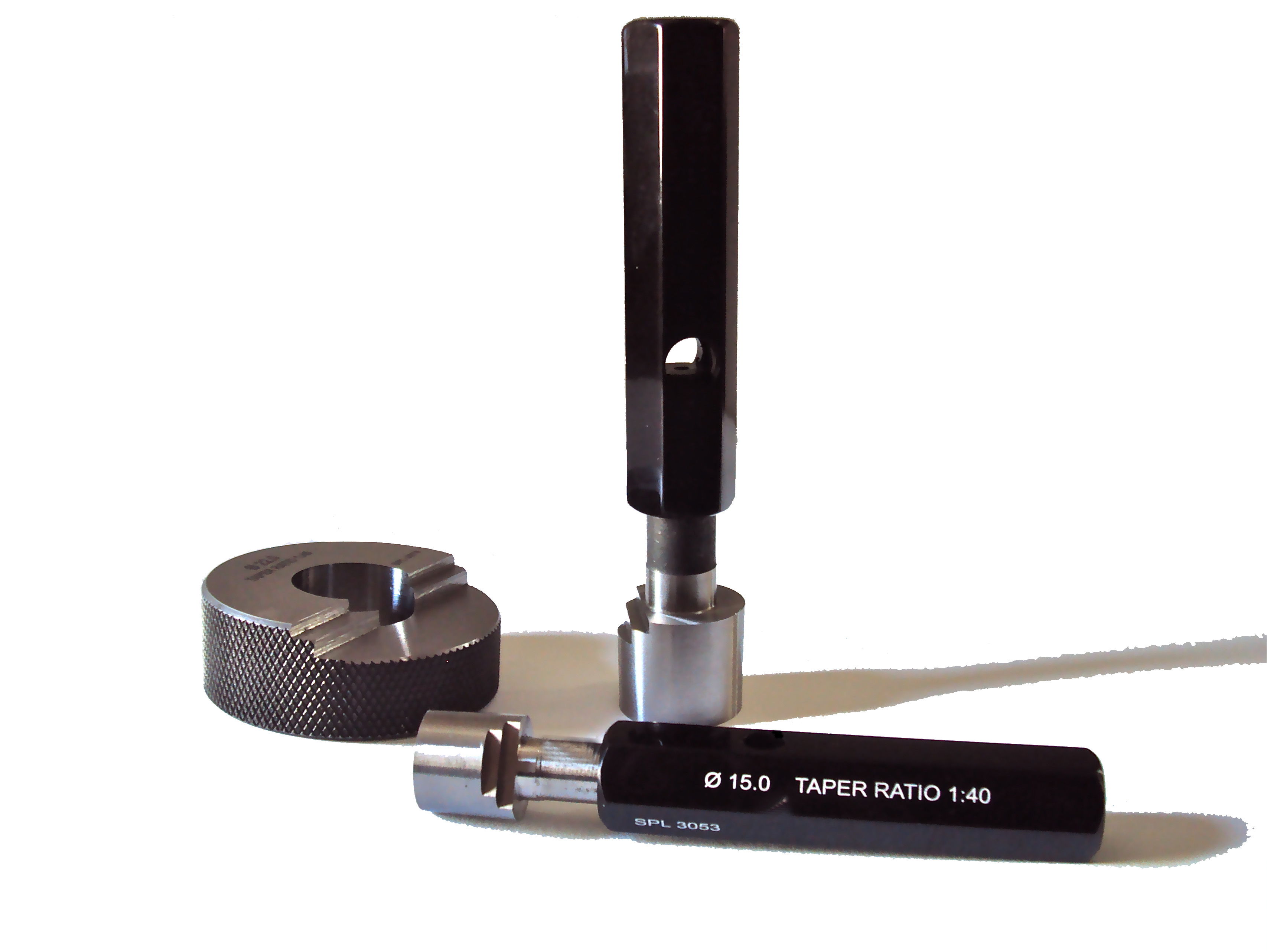

Our plug and ring gauges are use to check conical connectors made of metal &materials other than metal.
ISO5356-1:2004 – Fig. A1: Plug & Ring Gauges for Non-Metal Connectors
| Gauges for Connector Size | Plug Gauge | Ring Gauge | Gauging Test Application |
| 8.5 | Fig. A1 (Plug -8.5 mm) | Fig. A1 (Ring -8.5 mm) | For paediatrics breathing system connectors |
| 15 | Fig. A1 (Plug -15 mm) | Fig. A1 (Ring -15 mm) | For breathing system connectors |
| 22 | Fig. A1 (Plug -22 mm) | Fig. A1 (Ring -22 mm) | For breathing system connectors |
| 30 | Fig. A1 (Plug -30 mm) | Fig. A1 (Ring -30 mm) | For breathing system to an anaesthetic gas scavenging system connectors |
ISO5356-1:2004 – Fig. E1: Plug & Ring Gauges for Metal Connectors
| Gauges for Connector Size | Plug Gauge | Ring Gauge | Gauging Test Application |
| 8.5 | Fig. E1 (Plug -8.5 mm) | Fig. E1 (Ring -8.5 mm) | For paediatrics breathing system connectors |
| 15 | Fig. E1 (Plug -15 mm) | Fig. E1 (Ring -15 mm) | For breathing system connectors |
| 22 | Fig. E1 (Plug -22 mm) | Fig. E1 (Ring -22 mm) | For breathing system connectors |
| 23 | Fig. E1 (Plug -23 mm) | Fig. E1 (Ring -23 mm) | For vaporizer system connectors |
| 30 | Fig. E1 (Plug -30 mm) | Fig. E1 (Ring -30 mm) | For breathing to anaesthetic gas scavenging system connectors |
